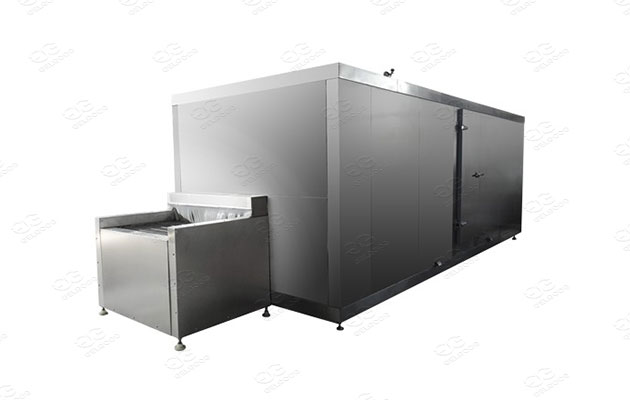

Premium IQF Belt Tunnel Freezer

Custom design IQF belt tunnel freezers. Suitable for vegetable, fruit, meat, seafood processors. Freeze large capacity of premium food-based products with great energy efficiency.


IQF belt tunnel freezer is a high efficiency freezing machine that widely used in many industries, like seafood industry, meat industry, poultry industry and so on. With innovative design, the commercial belt tunnel freezing machine can freeze the products within short period of time while uses energy effectively. In IQF belt tunnel freezer, the products make direct contact with the belt, which transfer the products along inside the tunnel freezer. As a professional manufacturer and supplier of belt tunnel freezers, we can design and manufacture IQF belt tunnel freezers to meet your needs.

Types of Commercial IQF Belt Tunnel Freezer

According to the belts used in the tunnel freezer, there are mainly two kinds of IQF tunnel freezers. One is mesh belt IQF tunnel freezer, which uses mesh belt to transfer products. While the other is solid belt tunnel freezer with solid transferring belt. Due to the characteristics of these two kinds of belt tunnel freezers, they can handle different kinds of products.

Features of IQF Belt Tunnel Freezing Machine

  1. Advanced and innovative design. With IQF technology and effective heat transferring system, the belt tunnel freezers can freeze large quantities of products within short period of time.
  2. Robust structure. The whole structure of the IQF tunnel freezer is made of high quality stainless steel and other superior materials, ensuring good insulation and freezing results.
  3. Great versatility. The belt tunnel freezers can freeze a great variety of vegetables and fruits quickly while preserve the quality of the products. It can be used to freeze vegetables and fruits, seafood, red meat, poultry, and so on.

Technical Parameters

Models SSD1-300 SSD1-500 SSD1-1000 SSD1-1500 SSD2-1000 SSD2-2000 SSD2-3000
Capacity(kg/h) 300 500 1000 1500 1000 2000 3000
Refrigeration capacity(kw) 50 80 160 240 160 300 400
Size 9040x2770x2700 11000x3400x2700 19000x3400x2700 19000x4800x2700 11000x6680x2700 19000x6680x2700 19910x4140x3800
Installed Power(kw) 5.3 9.5 19 30 19 38 53
Feed temperature(℃) +15℃
Discharge temperature(℃) -18℃
Circulating temeprature(℃) -35±2℃
Freezing time(min) 20~60
Refrigerants Customized
